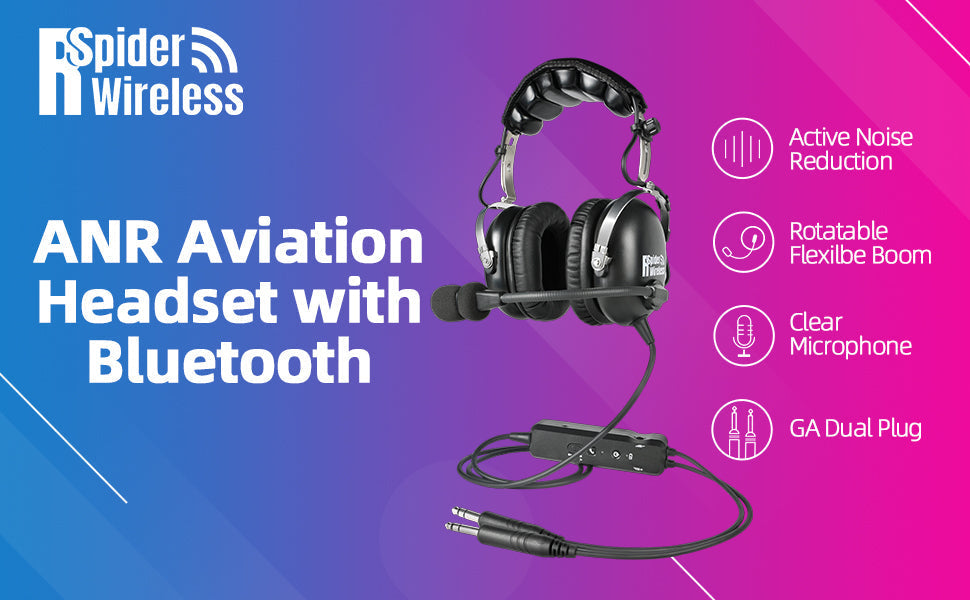

SPIDER WIRELESS Aviation Headset Bluetooth Control Module
Aviation headset Bluetooth control module is a wireless audio management core device designed for pilots, responsible for connecting the Bluetooth headset with the on-board communication system to achieve wireless audio transmission, multi-device switching and intelligent noise reduction control.
Operating Instruction for SW-PH-100ac-bt
Bluetooth on: Long press the Bluetooth HOLD button for more than 1 second to open the Bluetooth function, after opening it, it will automatically enter the pairing state.
Bluetooth Configuration: Mobile phone search for Bluetooth devices, find ‘BT-ANR’ in the Bluetooth search interface, and pair with it. If the mobile phone prompts you to enter the password, please enter 0000; a) After you turn on the Bluetooth function, it will automatically connect to the last connected Bluetooth device. If the Bluetooth function is switched on for 3 seconds and no previously paired device is searched for, the Bluetooth headset will automatically enter the pairing state; b) Once paired with the last device (mobile phone), the device (mobile phone) needs to turn off the Bluetooth so that the F-G4 is disconnected and in the pairing state in order to be able to pair with other devices.
Bluetooth Off: Long press the Bluetooth HOLD button for more than 3 seconds to turn off the Bluetooth function.
Control Control Description for SW-PH-100ac-bt
Left Volume Adjustment Wheel: Adjusts the left speaker volume level
Right Volume Adjustment Wheel: Adjusts the volume of the right speaker
Power indicator: Display the power light effect
Power button: Press it for 1 second to switch on
Bluetooth indicator: Display Bluetooth status light effect
Bluetooth HOLD key: Bluetooth on/off, answer, reject, replay calls
Mode switch: Flight priority, hybrid, music off mode switch
Bluetooth volume +: Control Bluetooth volume +
Bluetooth volume -: Control Bluetooth volume -
AUX port: AUX access (volume level is adjusted by the player, etc.)
Auto power off (ON) auto power off (OFF) function switch
Mono (M)\Stereo (S) function switching
Battery compartment to be loaded into the AA alkaline battery power supply
New Bluetooth Control Module for SW-600a
One of the highlights of the SW-620 Aviation Headset is its cleverly designed headset control box, which integrates a variety of functions to give you more control over the headset. The control box features an intuitive button layout, including play/pause, volume up/down, and answer/hang up phone functions, making it easy for you to operate the headset blind.
In addition, you can also set up a variety of function modes, function mode switching can be freely switched to through the control box fluctuation switch: intercom priority, mixing, and turn off the music of the 3 modes. Dual-channel switching - mono\stereo cut to ‘S’, the two speakers play the left and right channel sound respectively; mono\stereo cut to ‘M’, the two speakers play the left channel sound at the same time.
Whether it is the flexible needs of general aviation, the demanding standards of commercial aviation, or the encrypted communications of military missions, the Bluetooth Control Box is proving its irreplaceable value as it continues to evolve. In the future, it will not only be a tool for audio transmission, but also a key node in the smart aviation ecosystem, driving aviation communications towards a new era of seamless connectivity and autonomous response.
